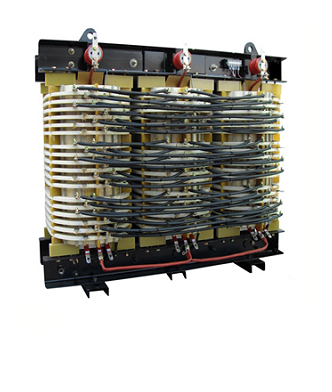

Inverter Dry Transformer |
| Ratings |
| Phase : Three |
| Frequency : 50 / 60 Hz |
| Capacity : 200~10,000 kVA |
| High Voltage : 2300, 3000, 3300, 4160, 4800, 5500, 6000, 6600, 10000, 11000 V |
| Low Voltage : 630, 640 V |
| Number of Coil : 6, 9, 12, 15, 18, 27 Coils |

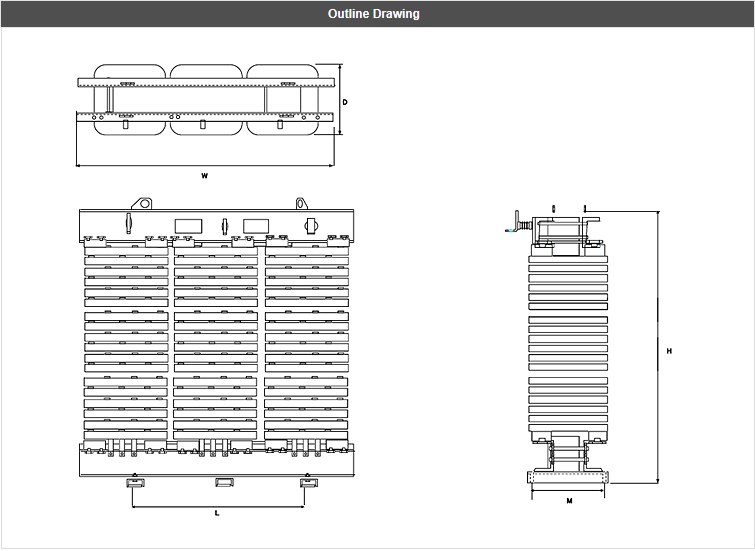

| Dimensions |
| Capacity (kVA) |
Material |
Dimensions (mm) |
Total W.T (kg) |
| W |
D |
H |
L |
M |
| 600 |
CU |
1,400 |
570 |
1,240 |
910 |
440 |
1,750 |
| AL |
1,540 |
615 |
1,330 |
1,000 |
440 |
1,720 |
| 1500 |
CU |
1,580 |
665 |
1,410 |
1,030 |
540 |
3,160 |
| AL |
1,720 |
715 |
1,540 |
1,120 |
540 |
3,130 |
| 3000 |
CU |
1,580 |
700 |
1,850 |
1,030 |
570 |
4,860 |
| AL |
1,730 |
725 |
2,000 |
1,130 |
570 |
4,560 |
| 6000 |
CU |
1,790 |
815 |
2,060 |
1,170 |
630 |
7,910 |
| AL |
1,990 |
860 |
2,220 |
1,300 |
630 |
7,460 |
| 10000 |
CU |
1,780 |
830 |
2,660 |
1,160 |
660 |
11,330 |
| AL |
1,960 |
890 |
3,020 |
1,280 |
660 |
10,580 |
