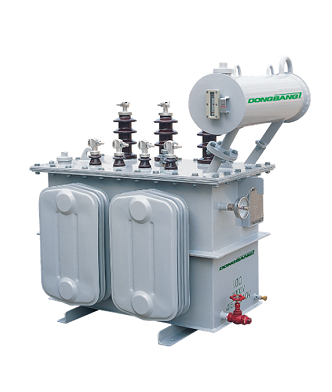

> 제품소개 > 변압기| 11kV, 22kV or 33kV Top Bushing Type Transformer | 11kV, 22kV or 33kV Side Box Type Transformer | 3D -TRI Type Transformer |
|---|
| Ratings |
|---|
| Phase : Three |
| Frequency : 50 / 60 Hz |
| High Voltage : 33, 22 & 11kV |
| Low Voltage : L.V |

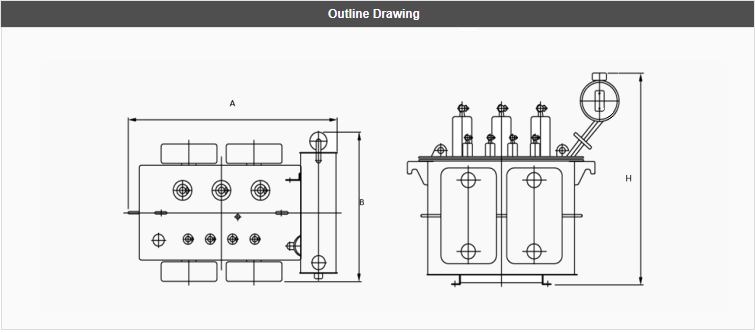

| Three Phase Dimensions (11kV) | |||||
|---|---|---|---|---|---|
| Capacity (kVA) | Dimension(mm) | Oil(L) | Total W.T (kg) | ||
| A | B | H | |||
| 50 | 1040 | 700 | 1050 | 127 | 440 |
| 100 | 1130 | 780 | 1100 | 163 | 600 |
| 200 | 1140 | 800 | 1300 | 220 | 870 |
| 300 | 1180 | 900 | 1350 | 265 | 1100 |
| 500 | 1300 | 1350 | 1550 | 470 | 1900 |
| 750 | 1600 | 1600 | 1800 | 600 | 2500 |
| 1000 | 1650 | 1650 | 1850 | 700 | 3000 |
| 1250 | 1700 | 1700 | 1900 | 850 | 3800 |
| 1500 | 1800 | 1900 | 1950 | 920 | 4200 |
| 2000 | 2000 | 1950 | 2000 | 1000 | 4800 |
