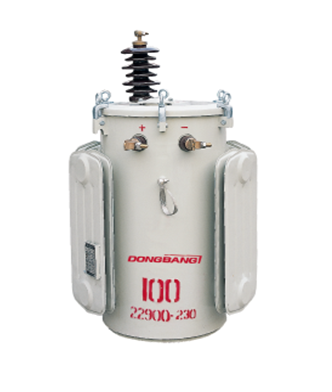

Single Bushing Type Transformer Two Bushing Type Transformer CSP Type Transformer
Amorphous Transformer Compact Transformer Automatic Voltage Regulating Pole Transformer
Ratings
Frequency : 50 / 60 Hz
High Voltage : 33, 22 & 11kV Grdy
Low Voltage : 600V and Below

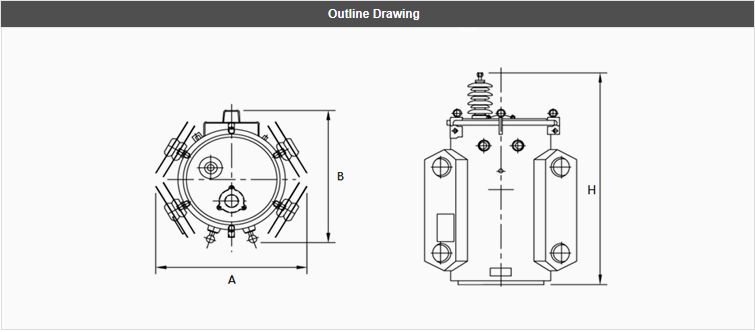

Dimensions
Capacity (kVA) Dimension(mm) Oil(L) Total W.T (kg)
A B H
10 450 520 1020 30 125
20 570 650 1095 63 190
30 655 685 1110 66 240
50 710 715 1135 90 290
75 760 750 1170 100 350
100 830 770 1220 125 450
¡Ø 22.9kV Grdy/13.2kV-LV(60§Ô)
