| Ratings |
|---|
| Phase : Three |
| Frequency : 50 / 60 Hz |
| High Voltage : 66kV and Below |
| Low Voltage : 33kV and Below |
| Capacity : 2,000kVA through 30,000kVA |
| Applicable Standards : KS, IEC, BSI, ANSI, IEEE, JEC |

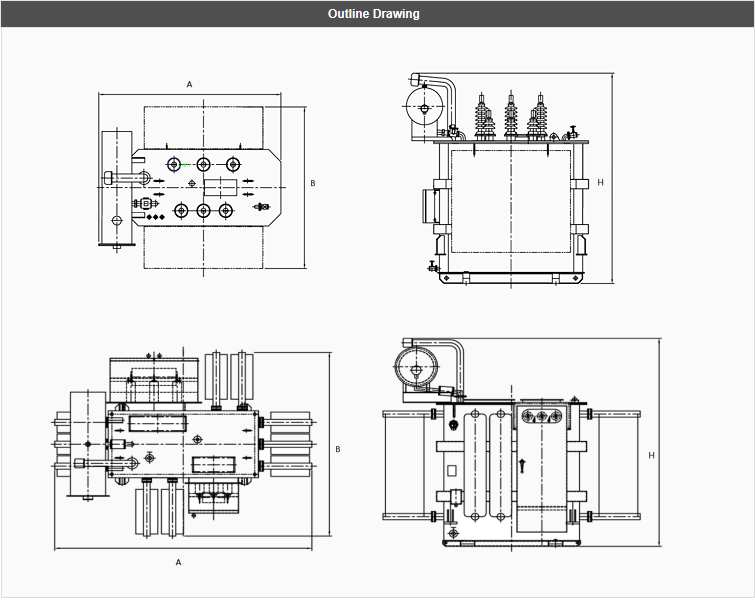

| Dimensions (Open Type) | |||||
|---|---|---|---|---|---|
| Capacity (kVA) | Dimension(mm) | Oil(L) | Total W.T (kg) | ||
| A | B | H | |||
| 2000 | 2350 | 1960 | 2500 | 1700 | 6200 |
| 2500 | 2400 | 2200 | 2600 | 2000 | 7000 |
| 3000 | 2600 | 2700 | 2700 | 2450 | 8600 |
| 5000 | 2700 | 2850 | 3100 | 2600 | 11000 |
| 6000 | 3000 | 3580 | 3300 | 3200 | 12000 |
| 7500 | 3400 | 3600 | 3500 | 4700 | 13200 |
| 10000 | 3400 | 3700 | 3800 | 5500 | 16200 |
| 15000 | 3600 | 3800 | 4000 | 6000 | 17500 |
| 20000 | 4000 | 5000 | 4300 | 6700 | 19000 |
| Dimensions (Cable Box Type) | |||||
|---|---|---|---|---|---|
| Capacity (kVA) | Dimension(mm) | Oil(L) | Total W.T (kg) | ||
| A | B | H | |||
| 2000 | 2300 | 1900 | 2500 | 1700 | 6200 |
| 2500 | 2450 | 2700 | 2700 | 2000 | 7000 |
| 3000 | 2600 | 2800 | 2800 | 2450 | 8600 |
| 5000 | 3700 | 3200 | 2850 | 2600 | 11000 |
| 6000 | 4400 | 3250 | 3300 | 3200 | 12000 |
| 7500 | 4600 | 3300 | 3500 | 4700 | 13200 |
| 10000 | 4800 | 3400 | 3900 | 5500 | 16200 |
| 15000 | 5000 | 3600 | 4100 | 6000 | 17500 |
| 20000 | 5600 | 4000 | 4500 | 6700 | 19000 |
