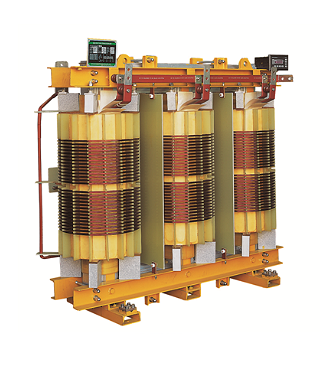

변압기
| Dry Transformer (U.L) |
Disaster Prevention Dry Transformer
(F1, E2, C2) |
Vacuum Pressure Impregnation Dry Transformer |
| Surge Cutout Dry Transformer |
Inverter Dry Transformer |
| Ratings |
| Phase : Single, Three |
| Frequency : 50 / 60 Hz |
| Capacity : 100~2,000kVA |
| Primary Voltage : 25kV and Below |
| Secondary Voltage : 120V thru 6600V |
| Specification |
| 150℃ or special request 220℃ insulation |
| AA, AA/FA |
| Only "H" Class |
| ANSI (IEEE), IEC, JEC, KS |

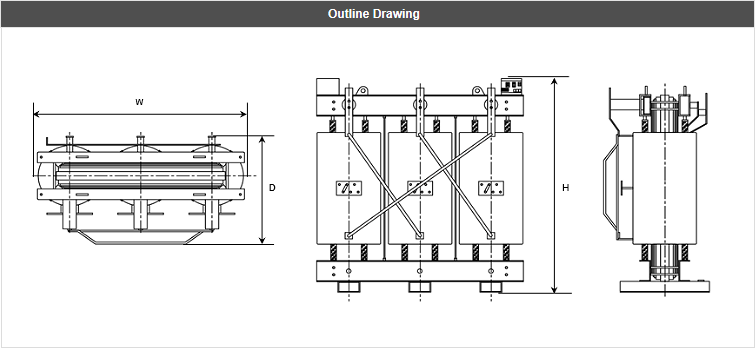

| Dimensions |
| Capacity (kVA) |
Dimension(mm) |
Total W.T (kg) |
| W |
D |
H |
| 100 |
1020 |
680 |
1100 |
570 |
| 200 |
1150 |
700 |
1200 |
830 |
| 300 |
1160 |
710 |
1340 |
1030 |
| 400 |
1220 |
730 |
1410 |
1200 |
| 500 |
1330 |
770 |
1450 |
1430 |
| 600 |
1360 |
780 |
1500 |
1640 |
| 750 |
1420 |
810 |
1530 |
1950 |
| 1000 |
1510 |
840 |
1610 |
2400 |
| 1500 |
1700 |
870 |
1800 |
3300 |
| 2000 |
1850 |
900 |
1930 |
4100 |
